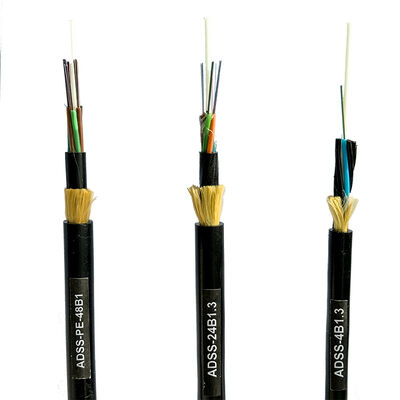

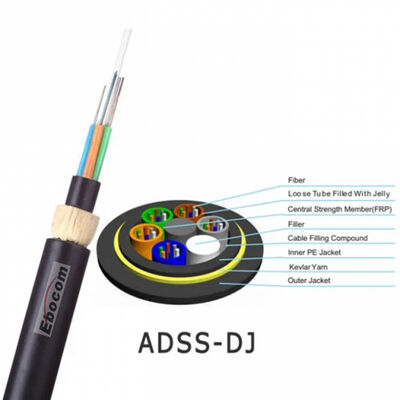

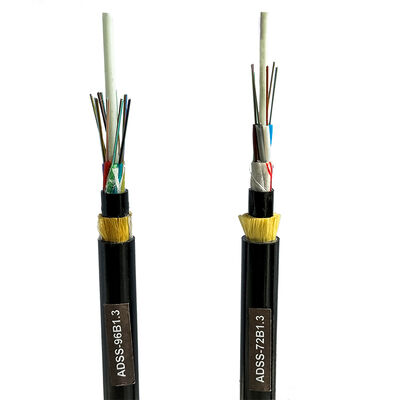

ADSS Double Jacket All Dielectric Self Supporting Fiber Optic Cable 24 Core For Internet Communication
| Nguồn gốc | Sơn Đông ， Trung Quốc |
|---|---|
| Hàng hiệu | OEM |
| Chứng nhận | ISO TLC |
| Số mô hình | QUẢNG CÁO -24b1.3 |
| Số lượng đặt hàng tối thiểu | 2000m |
| Giá bán | EXW $0.18/M |
| chi tiết đóng gói | 1. Trống bằng gỗ bằng gỗ hoặc trống gỗ không chế tạo, trống gỗ bình thường. 2. Kích thước trống có t |
| Thời gian giao hàng | 5-8 ngày |
| Điều khoản thanh toán | T/T, L/C |
| Khả năng cung cấp | 5000km/ngày |
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Loại sợi | G652D/G657A1 A2 | Số lượng sợi | lõi 2-288 |
|---|---|---|---|
| Thành viên sức mạnh | FRP | Áo khoác | Thể dục |
| Màu áo khoác | Đen | Thương hiệu | OEM |
| Làm nổi bật | ADSS fiber optic cable 24 core,dielectric self supporting fiber cable,internet communication fiber optic cable |
||
Mô tả sản phẩm
Description
ADSS (All-Dielectric Self-Supported) optical cable is also known as all-dielectric self-supporting optical cable. "All-dielectric" means that the ADSS optical cable is made entirely of dielectric materials. "Self-supporting" means that the cable's reinforcing materials can withstand its own weight and external loads. ADSS fiber optic cables are mainly used on utility poles, therefore they must have high mechanical strength and be able to withstand the impact of high-voltage environments.
Features
1.New strength members: New materials like Coats' inorganic StremX strength member are being developed to compete with traditional aramid yarn. These new materials can offer advantages like higher thermal and flame resistance, UV resistance, and rodent resistance, which increases the lifespan and safety of the cables.
2.Enhanced durability: Continued research into materials and design will lead to more durable cables that can withstand harsh environmental conditions for longer periods, ensuring their long-term viability.
3.Market outlook
The ADSS segment is a significant part of this growth, driven by the factors mentioned above.
Physical Parameters
| Span(m) | Ice+Wind:0mm+35m/sec | Ice+Wind:12mm+30m/sec | ||||||
|---|---|---|---|---|---|---|---|---|
| Cable O.D.(mm/in) | Cable Weight (kg/km)/(lb/kft) | Max.Working Tension(N/lb) | Max .Sag(%) | Cable O.D.(mm/in) | Cable Weight (kg/km)/(lb/kft) | Max.Working Tension(N/lb) | Max .Sag(%) | |
| 100 | 13.9/5.472 | 152/102.01 | 7578/1704 | 2 | 13.8/0.543 | 150.0/100.67 | 6621/1489 | 2 |
| 200 | 14.3/0.562 | 161/108.05 | 10430/2346 | 3 | 14.1/0.555 | 157.0/105.37 | 9000/2024 | 3 |
| 400 | 15.9/0.625 | 199/133.56 | 23221/5223 | 3 | 15.4/0.606 | 187.0/125.50 | 19225/4331 | 3 |
| 500 | 16.7/0.657 | 220/147.65 | 30590/6881 | 3 | 16.1/0.633 | 204.0/136.91 | 24885/5598 | 3 |
| 600 | 16.3/0.641 | 209/140.27 | 26952/6063 | 4 | 15.7/0.618 | 196.0/131.54 | 22154/4983 | 4 |
| 800 | 16.5/0.649 | 216/144.97 | 29452/6625 | 5 | 15.9/0.625 | 201.0/134.90 | 24042/5408 | 6 |
| 1000 | 16.7/0.657 | 221/148.32 | 31271/7034 | 6 | 16.1/0.633 | 204.0/136.91 | 24407/5490 | 6 |
* Above table do not cover all of available types. Other ADSS cables can be manufactured upon customer's request according to different span and sag environment.
| Minimum Bending Radius: | Maximum Compressive Load: | 4000N | |
| Under installation: | 20×OD | Repeated Impact: | 4.4 N.m (J) |
| During operation | 10×OD for unarmoured cables | Twist (Torsion): | 180×10 times, 125×OD |
| 20×OD for armoured cables | Cyclic Flexing: | 100 cycles | |
| Temperature Range: | |||
| Operating Temperature Range: | -40℃(-40℉) to +70℃(+158℉) | Crush Resistance: | 263N/cm (1250lb/in) |
| Storage Temperature Range: | -50℃(-58℉) to +70℃(+158℉) |
