Indoor Colored Optical Fiber Cable gjfjv 2 4 12 24 Core SM MM G652D G657A1 OM3

Indoor Colored Optical Fiber Cable gjfjv 2 4 12 24 Core SM MM G652D G657A1 OM3
Nơi xuất xứ:Sơn Đông,Trung Quốc
Tên thương hiệu:EBOCOM
Chứng nhận:ISO TLC
Số mô hình:GJFJV
Số lượng đặt hàng tối thiểu:2000m
Giá:EXW ≥2000m $0.18/M ≥5000m $0.14/M
Bao bì tiêu chuẩn:1. Trống bằng gỗ bằng gỗ hoặc trống gỗ không chế tạo, trống gỗ bình thường. 2. Kích thước trống có t
Thời gian giao hàng:5-8 ngày
Điều khoản thanh toán:T/T
Khả năng cung cấp:5000km/ngày
Chi tiết sản phẩm
Làm nổi bật:

G652D Indoor Colored Optical Fiber Cable

,

24 Core Optical Fiber Cable

Model: Cáp quang đệm chặt
Brand: EBOCOM/OEM
Length: tùy chỉnh
Cable Jacket: PVC, LSZH, PE
Fiber Type: SM/MM
Strength Member: Sợi Aramid
Mô tả sản phẩm
Thông số kỹ thuật chi tiết và đặc điểm

Product Introduction:

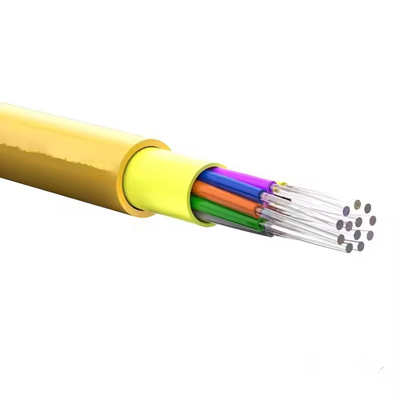

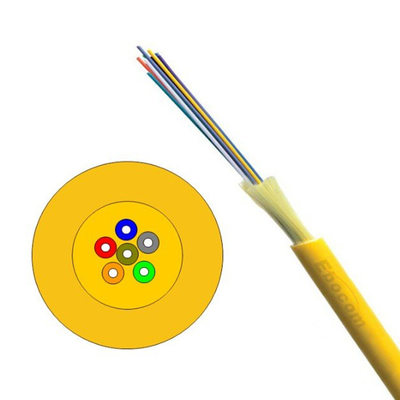

GJFJV type tight-buffered optical fiber bundle cable is made by evenly winding aramid yarn or high-strength glass yarn tight-buffered optical fibers as reinforcing members, and then covered with polyvinyl chloride sheath.



Features:

  1. Enhanced protection: The tight buffer provides excellent protection against physical damage, moisture, and environmental factors, ensuring the integrity and reliability of the optical fibers.
  2. Increased flexibility: The tight buffer layer makes the cable more flexible and allows for easier termination and handling during installation and maintenance processes.
  3. Small form factor: Due to the compact design, tight buffer cables have smaller overall diameters, making them easier to manage and install in limited space environments.
  4. Direct termination capabilities: The tight buffer design allows for direct termination of connectors onto the fiber, eliminating the need for additional protective elements like splice closures.



Applications:

.Suitable for Indoor distribution
·Pigtail jumper, patch cord
·Optical connection of Communication equipment and connection machine.
·Floor installation, maintenance friendly.









Optical Characteristics

Fiber Type Attenuation Overfilled launch Bandwidth Effective Modal Bandwidth 10GB/S Ethernet link length Min Bending Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22         16
G657A1 0.36/0.22         10
G657A2 0.36/0.22         7.5
50/125   3.0/1.0 ≥500/500     30
62.2/125   3.0/1.0 ≥200/500     30
OM3   3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4   3.0/1.0 ≥3500/500 ≥4700 ≥550 30
B1-OM3   3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
B1-OM4   3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5
